Sparkline

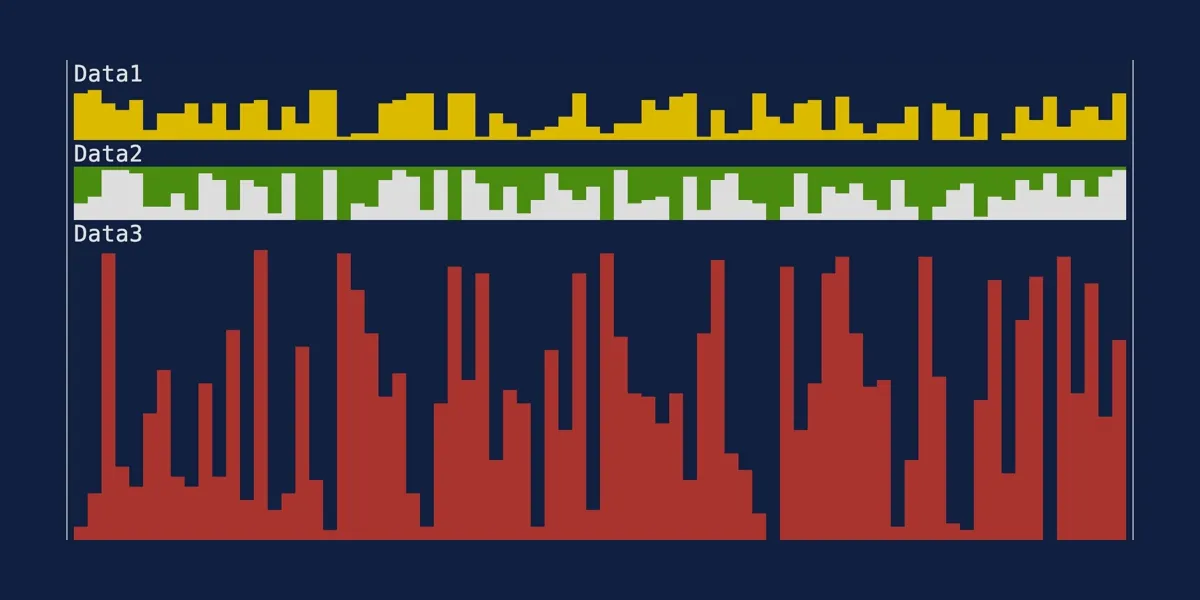

Demonstrates the Sparkline widget.

run

git clone https://github.com/ratatui-org/ratatui.git --branch latest
cd ratatui
cargo run --example=sparkline --features=crossterm

sparkline.rs

//! # [Ratatui] Sparkline example
//!
//! The latest version of this example is available in the [examples] folder in the repository.
//!
//! Please note that the examples are designed to be run against the `main` branch of the Github
//! repository. This means that you may not be able to compile with the latest release version on
//! crates.io, or the one that you have installed locally.
//!
//! See the [examples readme] for more information on finding examples that match the version of the
//! library you are using.
//!
//! [Ratatui]: https://github.com/ratatui-org/ratatui
//! [examples]: https://github.com/ratatui-org/ratatui/blob/main/examples
//! [examples readme]: https://github.com/ratatui-org/ratatui/blob/main/examples/README.md

use std::{
    error::Error,
    io,
    time::{Duration, Instant},
};

use rand::{
    distributions::{Distribution, Uniform},
    rngs::ThreadRng,
};
use ratatui::{
    crossterm::{
        event::{self, DisableMouseCapture, EnableMouseCapture, Event, KeyCode},
        execute,
        terminal::{disable_raw_mode, enable_raw_mode, EnterAlternateScreen, LeaveAlternateScreen},
    },
    prelude::*,
    widgets::{Block, Borders, Sparkline},
};

#[derive(Clone)]
struct RandomSignal {
    distribution: Uniform<u64>,
    rng: ThreadRng,
}

impl RandomSignal {
    fn new(lower: u64, upper: u64) -> Self {
        Self {
            distribution: Uniform::new(lower, upper),
            rng: rand::thread_rng(),
        }
    }
}

impl Iterator for RandomSignal {
    type Item = u64;
    fn next(&mut self) -> Option<u64> {
        Some(self.distribution.sample(&mut self.rng))
    }
}

struct App {
    signal: RandomSignal,
    data1: Vec<u64>,
    data2: Vec<u64>,
    data3: Vec<u64>,
}

impl App {
    fn new() -> Self {
        let mut signal = RandomSignal::new(0, 100);
        let data1 = signal.by_ref().take(200).collect::<Vec<u64>>();
        let data2 = signal.by_ref().take(200).collect::<Vec<u64>>();
        let data3 = signal.by_ref().take(200).collect::<Vec<u64>>();
        Self {
            signal,
            data1,
            data2,
            data3,
        }
    }

    fn on_tick(&mut self) {
        let value = self.signal.next().unwrap();
        self.data1.pop();
        self.data1.insert(0, value);
        let value = self.signal.next().unwrap();
        self.data2.pop();
        self.data2.insert(0, value);
        let value = self.signal.next().unwrap();
        self.data3.pop();
        self.data3.insert(0, value);
    }
}

fn main() -> Result<(), Box<dyn Error>> {
    // setup terminal
    enable_raw_mode()?;
    let mut stdout = io::stdout();
    execute!(stdout, EnterAlternateScreen, EnableMouseCapture)?;
    let backend = CrosstermBackend::new(stdout);
    let mut terminal = Terminal::new(backend)?;

    // create app and run it
    let tick_rate = Duration::from_millis(250);
    let app = App::new();
    let res = run_app(&mut terminal, app, tick_rate);

    // restore terminal
    disable_raw_mode()?;
    execute!(
        terminal.backend_mut(),
        LeaveAlternateScreen,
        DisableMouseCapture
    )?;
    terminal.show_cursor()?;

    if let Err(err) = res {
        println!("{err:?}");
    }

    Ok(())
}

fn run_app<B: Backend>(
    terminal: &mut Terminal<B>,
    mut app: App,
    tick_rate: Duration,
) -> io::Result<()> {
    let mut last_tick = Instant::now();
    loop {
        terminal.draw(|f| ui(f, &app))?;

        let timeout = tick_rate.saturating_sub(last_tick.elapsed());
        if event::poll(timeout)? {
            if let Event::Key(key) = event::read()? {
                if key.code == KeyCode::Char('q') {
                    return Ok(());
                }
            }
        }
        if last_tick.elapsed() >= tick_rate {
            app.on_tick();
            last_tick = Instant::now();
        }
    }
}

fn ui(f: &mut Frame, app: &App) {
    let chunks = Layout::vertical([
        Constraint::Length(3),
        Constraint::Length(3),
        Constraint::Min(0),
    ])
    .split(f.size());
    let sparkline = Sparkline::default()
        .block(
            Block::new()
                .borders(Borders::LEFT | Borders::RIGHT)
                .title("Data1"),
        )
        .data(&app.data1)
        .style(Style::default().fg(Color::Yellow));
    f.render_widget(sparkline, chunks[0]);
    let sparkline = Sparkline::default()
        .block(
            Block::new()
                .borders(Borders::LEFT | Borders::RIGHT)
                .title("Data2"),
        )
        .data(&app.data2)
        .style(Style::default().bg(Color::Green));
    f.render_widget(sparkline, chunks[1]);
    // Multiline
    let sparkline = Sparkline::default()
        .block(
            Block::new()
                .borders(Borders::LEFT | Borders::RIGHT)
                .title("Data3"),
        )
        .data(&app.data3)
        .style(Style::default().fg(Color::Red));
    f.render_widget(sparkline, chunks[2]);
}
