Scrollbar

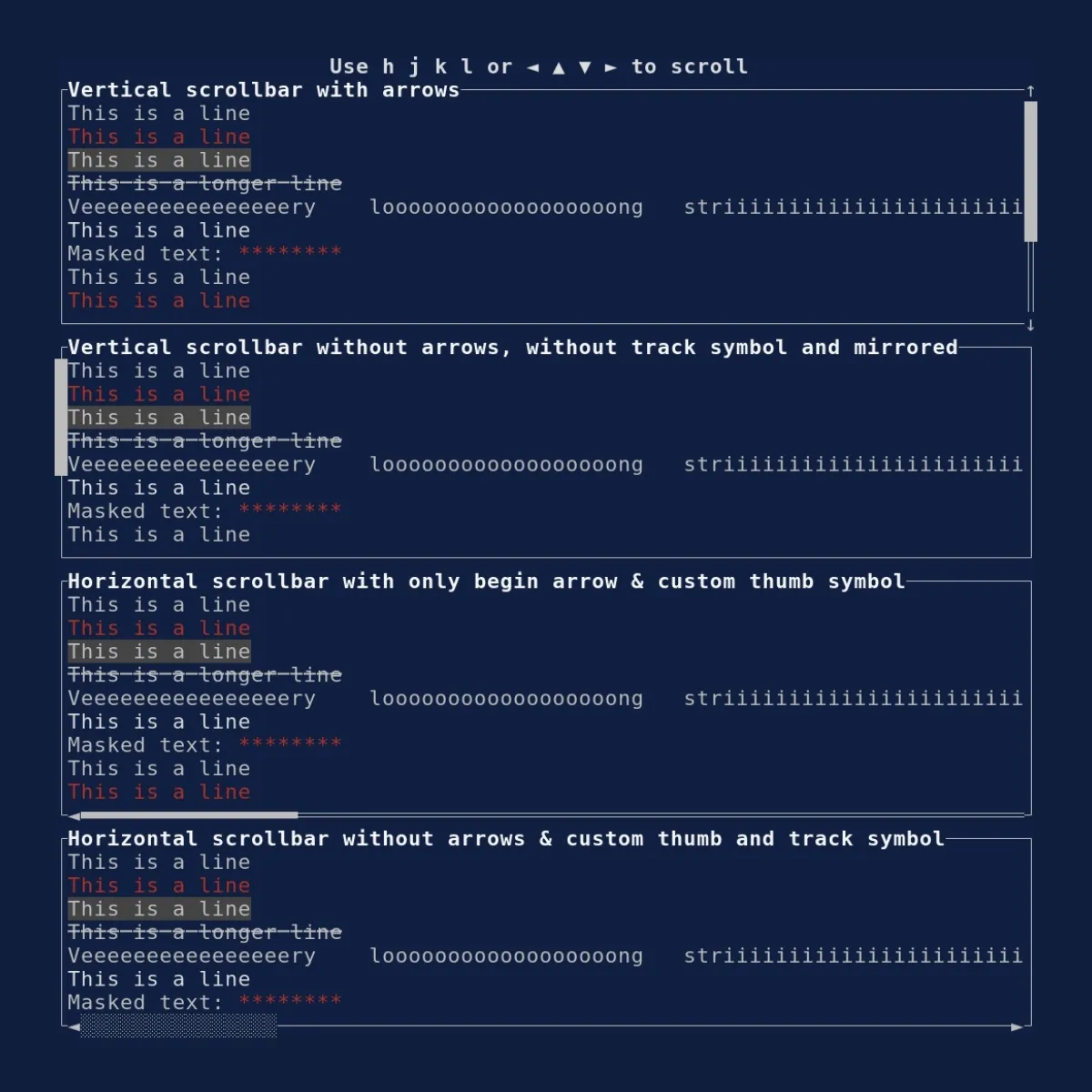

Demonstrates the Scrollbar widget.

run

git clone https://github.com/ratatui-org/ratatui.git --branch latest
cd ratatui
cargo run --example=scrollbar --features=crossterm

scrollbar.rs

//! # [Ratatui] Scrollbar example
//!
//! The latest version of this example is available in the [examples] folder in the repository.
//!
//! Please note that the examples are designed to be run against the `main` branch of the Github
//! repository. This means that you may not be able to compile with the latest release version on
//! crates.io, or the one that you have installed locally.
//!
//! See the [examples readme] for more information on finding examples that match the version of the
//! library you are using.
//!
//! [Ratatui]: https://github.com/ratatui-org/ratatui
//! [examples]: https://github.com/ratatui-org/ratatui/blob/main/examples
//! [examples readme]: https://github.com/ratatui-org/ratatui/blob/main/examples/README.md

#![warn(clippy::pedantic)]
#![allow(clippy::wildcard_imports)]

use std::{
    error::Error,
    io,
    time::{Duration, Instant},
};

use ratatui::{
    crossterm::{
        event::{self, DisableMouseCapture, EnableMouseCapture, Event, KeyCode},
        execute,
        terminal::{disable_raw_mode, enable_raw_mode, EnterAlternateScreen, LeaveAlternateScreen},
    },
    prelude::*,
    symbols::scrollbar,
    widgets::*,
};

#[derive(Default)]
struct App {
    pub vertical_scroll_state: ScrollbarState,
    pub horizontal_scroll_state: ScrollbarState,
    pub vertical_scroll: usize,
    pub horizontal_scroll: usize,
}

fn main() -> Result<(), Box<dyn Error>> {
    // setup terminal
    enable_raw_mode()?;
    let mut stdout = io::stdout();
    execute!(stdout, EnterAlternateScreen, EnableMouseCapture)?;
    let backend = CrosstermBackend::new(stdout);
    let mut terminal = Terminal::new(backend)?;

    // create app and run it
    let tick_rate = Duration::from_millis(250);
    let app = App::default();
    let res = run_app(&mut terminal, app, tick_rate);

    // restore terminal
    disable_raw_mode()?;
    execute!(
        terminal.backend_mut(),
        LeaveAlternateScreen,
        DisableMouseCapture
    )?;
    terminal.show_cursor()?;

    if let Err(err) = res {
        println!("{err:?}");
    }

    Ok(())
}

fn run_app<B: Backend>(
    terminal: &mut Terminal<B>,
    mut app: App,
    tick_rate: Duration,
) -> io::Result<()> {
    let mut last_tick = Instant::now();
    loop {
        terminal.draw(|f| ui(f, &mut app))?;

        let timeout = tick_rate.saturating_sub(last_tick.elapsed());
        if event::poll(timeout)? {
            if let Event::Key(key) = event::read()? {
                match key.code {
                    KeyCode::Char('q') => return Ok(()),
                    KeyCode::Char('j') | KeyCode::Down => {
                        app.vertical_scroll = app.vertical_scroll.saturating_add(1);
                        app.vertical_scroll_state =
                            app.vertical_scroll_state.position(app.vertical_scroll);
                    }
                    KeyCode::Char('k') | KeyCode::Up => {
                        app.vertical_scroll = app.vertical_scroll.saturating_sub(1);
                        app.vertical_scroll_state =
                            app.vertical_scroll_state.position(app.vertical_scroll);
                    }
                    KeyCode::Char('h') | KeyCode::Left => {
                        app.horizontal_scroll = app.horizontal_scroll.saturating_sub(1);
                        app.horizontal_scroll_state =
                            app.horizontal_scroll_state.position(app.horizontal_scroll);
                    }
                    KeyCode::Char('l') | KeyCode::Right => {
                        app.horizontal_scroll = app.horizontal_scroll.saturating_add(1);
                        app.horizontal_scroll_state =
                            app.horizontal_scroll_state.position(app.horizontal_scroll);
                    }
                    _ => {}
                }
            }
        }
        if last_tick.elapsed() >= tick_rate {
            last_tick = Instant::now();
        }
    }
}

#[allow(clippy::too_many_lines, clippy::cast_possible_truncation)]
fn ui(f: &mut Frame, app: &mut App) {
    let size = f.size();

    // Words made "loooong" to demonstrate line breaking.
    let s = "Veeeeeeeeeeeeeeeery    loooooooooooooooooong   striiiiiiiiiiiiiiiiiiiiiiiiiing.   ";
    let mut long_line = s.repeat(usize::from(size.width) / s.len() + 4);
    long_line.push('\n');

    let chunks = Layout::vertical([
        Constraint::Min(1),
        Constraint::Percentage(25),
        Constraint::Percentage(25),
        Constraint::Percentage(25),
        Constraint::Percentage(25),
    ])
    .split(size);

    let text = vec![
        Line::from("This is a line "),
        Line::from("This is a line   ".red()),
        Line::from("This is a line".on_dark_gray()),
        Line::from("This is a longer line".crossed_out()),
        Line::from(long_line.clone()),
        Line::from("This is a line".reset()),
        Line::from(vec![
            Span::raw("Masked text: "),
            Span::styled(Masked::new("password", '*'), Style::new().fg(Color::Red)),
        ]),
        Line::from("This is a line "),
        Line::from("This is a line   ".red()),
        Line::from("This is a line".on_dark_gray()),
        Line::from("This is a longer line".crossed_out()),
        Line::from(long_line.clone()),
        Line::from("This is a line".reset()),
        Line::from(vec![
            Span::raw("Masked text: "),
            Span::styled(Masked::new("password", '*'), Style::new().fg(Color::Red)),
        ]),
    ];
    app.vertical_scroll_state = app.vertical_scroll_state.content_length(text.len());
    app.horizontal_scroll_state = app.horizontal_scroll_state.content_length(long_line.len());

    let create_block = |title: &'static str| Block::bordered().gray().title(title.bold());

    let title = Block::new()
        .title_alignment(Alignment::Center)
        .title("Use h j k l or ◄ ▲ ▼ ► to scroll ".bold());
    f.render_widget(title, chunks[0]);

    let paragraph = Paragraph::new(text.clone())
        .gray()
        .block(create_block("Vertical scrollbar with arrows"))
        .scroll((app.vertical_scroll as u16, 0));
    f.render_widget(paragraph, chunks[1]);
    f.render_stateful_widget(
        Scrollbar::new(ScrollbarOrientation::VerticalRight)
            .begin_symbol(Some("↑"))
            .end_symbol(Some("↓")),
        chunks[1],
        &mut app.vertical_scroll_state,
    );

    let paragraph = Paragraph::new(text.clone())
        .gray()
        .block(create_block(
            "Vertical scrollbar without arrows, without track symbol and mirrored",
        ))
        .scroll((app.vertical_scroll as u16, 0));
    f.render_widget(paragraph, chunks[2]);
    f.render_stateful_widget(
        Scrollbar::new(ScrollbarOrientation::VerticalLeft)
            .symbols(scrollbar::VERTICAL)
            .begin_symbol(None)
            .track_symbol(None)
            .end_symbol(None),
        chunks[2].inner(Margin {
            vertical: 1,
            horizontal: 0,
        }),
        &mut app.vertical_scroll_state,
    );

    let paragraph = Paragraph::new(text.clone())
        .gray()
        .block(create_block(
            "Horizontal scrollbar with only begin arrow & custom thumb symbol",
        ))
        .scroll((0, app.horizontal_scroll as u16));
    f.render_widget(paragraph, chunks[3]);
    f.render_stateful_widget(
        Scrollbar::new(ScrollbarOrientation::HorizontalBottom)
            .thumb_symbol("🬋")
            .end_symbol(None),
        chunks[3].inner(Margin {
            vertical: 0,
            horizontal: 1,
        }),
        &mut app.horizontal_scroll_state,
    );

    let paragraph = Paragraph::new(text.clone())
        .gray()
        .block(create_block(
            "Horizontal scrollbar without arrows & custom thumb and track symbol",
        ))
        .scroll((0, app.horizontal_scroll as u16));
    f.render_widget(paragraph, chunks[4]);
    f.render_stateful_widget(
        Scrollbar::new(ScrollbarOrientation::HorizontalBottom)
            .thumb_symbol("░")
            .track_symbol(Some("─")),
        chunks[4].inner(Margin {
            vertical: 0,
            horizontal: 1,
        }),
        &mut app.horizontal_scroll_state,
    );
}
