Ratatui

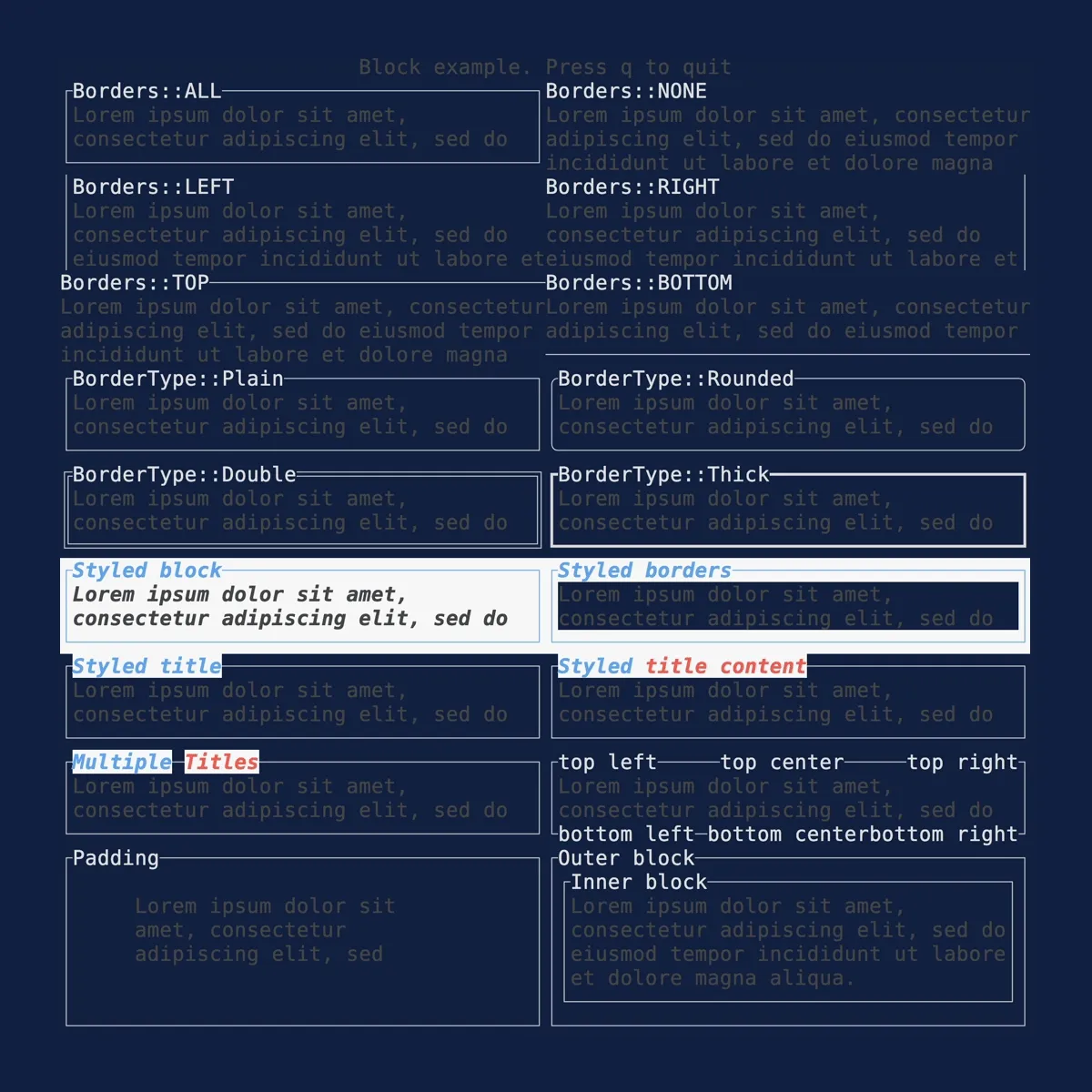

Block

Demonstrates the Block widget.

run
git clone https://github.com/ratatui-org/ratatui.git --branch latest
cd ratatui
cargo run --example=block --features=crossterm

Block

block.rs
//! # [Ratatui] Block example
//!
//! The latest version of this example is available in the [examples] folder in the repository.
//!
//! Please note that the examples are designed to be run against the `main` branch of the Github
//! repository. This means that you may not be able to compile with the latest release version on
//! crates.io, or the one that you have installed locally.
//!
//! See the [examples readme] for more information on finding examples that match the version of the
//! library you are using.
//!
//! [Ratatui]: https://github.com/ratatui-org/ratatui
//! [examples]: https://github.com/ratatui-org/ratatui/blob/main/examples
//! [examples readme]: https://github.com/ratatui-org/ratatui/blob/main/examples/README.md


use std::{
    error::Error,
    io::{stdout, Stdout},
    ops::ControlFlow,
    time::Duration,
};


use itertools::Itertools;
use ratatui::{
    crossterm::{
        event::{self, Event, KeyCode},
        execute,
        terminal::{disable_raw_mode, enable_raw_mode, EnterAlternateScreen, LeaveAlternateScreen},
    },
    prelude::*,
    widgets::{
        block::{Position, Title},
        Block, BorderType, Borders, Padding, Paragraph, Wrap,
    },
};


// These type aliases are used to make the code more readable by reducing repetition of the generic
// types. They are not necessary for the functionality of the code.
type Terminal = ratatui::Terminal<CrosstermBackend<Stdout>>;
type Result<T> = std::result::Result<T, Box<dyn Error>>;


fn main() -> Result<()> {
    let mut terminal = setup_terminal()?;
    let result = run(&mut terminal);
    restore_terminal(terminal)?;


    if let Err(err) = result {
        eprintln!("{err:?}");
    }
    Ok(())
}


fn setup_terminal() -> Result<Terminal> {
    enable_raw_mode()?;
    let mut stdout = stdout();
    execute!(stdout, EnterAlternateScreen)?;
    let backend = CrosstermBackend::new(stdout);
    let terminal = Terminal::new(backend)?;
    Ok(terminal)
}


fn restore_terminal(mut terminal: Terminal) -> Result<()> {
    disable_raw_mode()?;
    execute!(terminal.backend_mut(), LeaveAlternateScreen)?;
    Ok(())
}


fn run(terminal: &mut Terminal) -> Result<()> {
    loop {
        terminal.draw(ui)?;
        if handle_events()?.is_break() {
            return Ok(());
        }
    }
}


fn handle_events() -> Result<ControlFlow<()>> {
    if event::poll(Duration::from_millis(100))? {
        if let Event::Key(key) = event::read()? {
            if key.code == KeyCode::Char('q') {
                return Ok(ControlFlow::Break(()));
            }
        }
    }
    Ok(ControlFlow::Continue(()))
}


fn ui(frame: &mut Frame) {
    let (title_area, layout) = calculate_layout(frame.size());


    render_title(frame, title_area);


    let paragraph = placeholder_paragraph();


    render_borders(&paragraph, Borders::ALL, frame, layout[0][0]);
    render_borders(&paragraph, Borders::NONE, frame, layout[0][1]);
    render_borders(&paragraph, Borders::LEFT, frame, layout[1][0]);
    render_borders(&paragraph, Borders::RIGHT, frame, layout[1][1]);
    render_borders(&paragraph, Borders::TOP, frame, layout[2][0]);
    render_borders(&paragraph, Borders::BOTTOM, frame, layout[2][1]);


    render_border_type(&paragraph, BorderType::Plain, frame, layout[3][0]);
    render_border_type(&paragraph, BorderType::Rounded, frame, layout[3][1]);
    render_border_type(&paragraph, BorderType::Double, frame, layout[4][0]);
    render_border_type(&paragraph, BorderType::Thick, frame, layout[4][1]);


    render_styled_block(&paragraph, frame, layout[5][0]);
    render_styled_borders(&paragraph, frame, layout[5][1]);
    render_styled_title(&paragraph, frame, layout[6][0]);
    render_styled_title_content(&paragraph, frame, layout[6][1]);
    render_multiple_titles(&paragraph, frame, layout[7][0]);
    render_multiple_title_positions(&paragraph, frame, layout[7][1]);
    render_padding(&paragraph, frame, layout[8][0]);
    render_nested_blocks(&paragraph, frame, layout[8][1]);
}


/// Calculate the layout of the UI elements.
///
/// Returns a tuple of the title area and the main areas.
fn calculate_layout(area: Rect) -> (Rect, Vec<Vec<Rect>>) {
    let main_layout = Layout::vertical([Constraint::Length(1), Constraint::Min(0)]);
    let block_layout = Layout::vertical([Constraint::Max(4); 9]);
    let [title_area, main_area] = main_layout.areas(area);
    let main_areas = block_layout
        .split(main_area)
        .iter()
        .map(|&area| {
            Layout::horizontal([Constraint::Percentage(50), Constraint::Percentage(50)])
                .split(area)
                .to_vec()
        })
        .collect_vec();
    (title_area, main_areas)
}


fn render_title(frame: &mut Frame, area: Rect) {
    frame.render_widget(
        Paragraph::new("Block example. Press q to quit")
            .dark_gray()
            .alignment(Alignment::Center),
        area,
    );
}


fn placeholder_paragraph() -> Paragraph<'static> {
    let text = "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.";
    Paragraph::new(text.dark_gray()).wrap(Wrap { trim: true })
}


fn render_borders(paragraph: &Paragraph, border: Borders, frame: &mut Frame, area: Rect) {
    let block = Block::new()
        .borders(border)
        .title(format!("Borders::{border:#?}"));
    frame.render_widget(paragraph.clone().block(block), area);
}


fn render_border_type(
    paragraph: &Paragraph,
    border_type: BorderType,
    frame: &mut Frame,
    area: Rect,
) {
    let block = Block::bordered()
        .border_type(border_type)
        .title(format!("BorderType::{border_type:#?}"));
    frame.render_widget(paragraph.clone().block(block), area);
}
fn render_styled_borders(paragraph: &Paragraph, frame: &mut Frame, area: Rect) {
    let block = Block::bordered()
        .border_style(Style::new().blue().on_white().bold().italic())
        .title("Styled borders");
    frame.render_widget(paragraph.clone().block(block), area);
}


fn render_styled_block(paragraph: &Paragraph, frame: &mut Frame, area: Rect) {
    let block = Block::bordered()
        .style(Style::new().blue().on_white().bold().italic())
        .title("Styled block");
    frame.render_widget(paragraph.clone().block(block), area);
}


// Note: this currently renders incorrectly, see https://github.com/ratatui-org/ratatui/issues/349
fn render_styled_title(paragraph: &Paragraph, frame: &mut Frame, area: Rect) {
    let block = Block::bordered()
        .title("Styled title")
        .title_style(Style::new().blue().on_white().bold().italic());
    frame.render_widget(paragraph.clone().block(block), area);
}


fn render_styled_title_content(paragraph: &Paragraph, frame: &mut Frame, area: Rect) {
    let title = Line::from(vec![
        "Styled ".blue().on_white().bold().italic(),
        "title content".red().on_white().bold().italic(),
    ]);
    let block = Block::bordered().title(title);
    frame.render_widget(paragraph.clone().block(block), area);
}


fn render_multiple_titles(paragraph: &Paragraph, frame: &mut Frame, area: Rect) {
    let block = Block::bordered()
        .title("Multiple".blue().on_white().bold().italic())
        .title("Titles".red().on_white().bold().italic());
    frame.render_widget(paragraph.clone().block(block), area);
}


fn render_multiple_title_positions(paragraph: &Paragraph, frame: &mut Frame, area: Rect) {
    let block = Block::bordered()
        .title(
            Title::from("top left")
                .position(Position::Top)
                .alignment(Alignment::Left),
        )
        .title(
            Title::from("top center")
                .position(Position::Top)
                .alignment(Alignment::Center),
        )
        .title(
            Title::from("top right")
                .position(Position::Top)
                .alignment(Alignment::Right),
        )
        .title(
            Title::from("bottom left")
                .position(Position::Bottom)
                .alignment(Alignment::Left),
        )
        .title(
            Title::from("bottom center")
                .position(Position::Bottom)
                .alignment(Alignment::Center),
        )
        .title(
            Title::from("bottom right")
                .position(Position::Bottom)
                .alignment(Alignment::Right),
        );
    frame.render_widget(paragraph.clone().block(block), area);
}


fn render_padding(paragraph: &Paragraph, frame: &mut Frame, area: Rect) {
    let block = Block::bordered()
        .padding(Padding::new(5, 10, 1, 2))
        .title("Padding");
    frame.render_widget(paragraph.clone().block(block), area);
}


fn render_nested_blocks(paragraph: &Paragraph, frame: &mut Frame, area: Rect) {
    let outer_block = Block::bordered().title("Outer block");
    let inner_block = Block::bordered().title("Inner block");
    let inner = outer_block.inner(area);
    frame.render_widget(outer_block, area);
    frame.render_widget(paragraph.clone().block(inner_block), inner);
}
