Popup

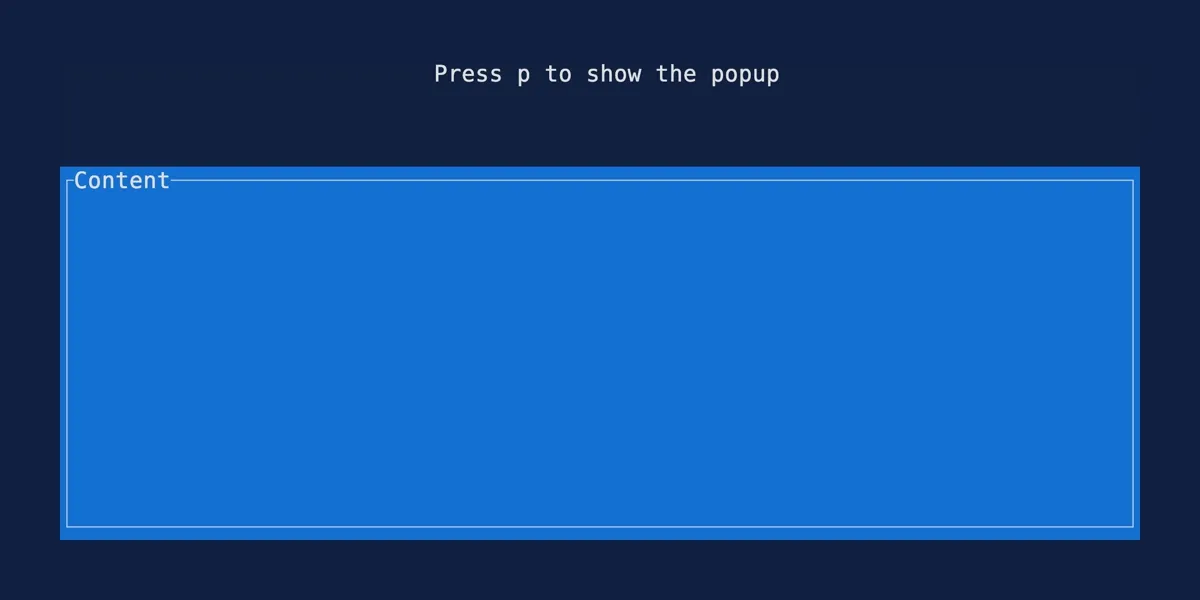

Demonstrates how to render a widget over the top of previously rendered widgets using the Clear widget.

run

git clone https://github.com/ratatui-org/ratatui.git --branch latest
cd ratatui
cargo run --example=popup --features=crossterm

popup.rs

//! # [Ratatui] Popup example
//!
//! The latest version of this example is available in the [examples] folder in the repository.
//!
//! Please note that the examples are designed to be run against the `main` branch of the Github
//! repository. This means that you may not be able to compile with the latest release version on
//! crates.io, or the one that you have installed locally.
//!
//! See the [examples readme] for more information on finding examples that match the version of the
//! library you are using.
//!
//! [Ratatui]: https://github.com/ratatui-org/ratatui
//! [examples]: https://github.com/ratatui-org/ratatui/blob/main/examples
//! [examples readme]: https://github.com/ratatui-org/ratatui/blob/main/examples/README.md

// See also https://github.com/joshka/tui-popup and
// https://github.com/sephiroth74/tui-confirm-dialog

use std::{error::Error, io};

use ratatui::{
    crossterm::{
        event::{self, DisableMouseCapture, EnableMouseCapture, Event, KeyCode, KeyEventKind},
        execute,
        terminal::{disable_raw_mode, enable_raw_mode, EnterAlternateScreen, LeaveAlternateScreen},
    },
    prelude::*,
    widgets::{Block, Clear, Paragraph, Wrap},
};

struct App {
    show_popup: bool,
}

impl App {
    const fn new() -> Self {
        Self { show_popup: false }
    }
}

fn main() -> Result<(), Box<dyn Error>> {
    // setup terminal
    enable_raw_mode()?;
    let mut stdout = io::stdout();
    execute!(stdout, EnterAlternateScreen, EnableMouseCapture)?;
    let backend = CrosstermBackend::new(stdout);
    let mut terminal = Terminal::new(backend)?;

    // create app and run it
    let app = App::new();
    let res = run_app(&mut terminal, app);

    // restore terminal
    disable_raw_mode()?;
    execute!(
        terminal.backend_mut(),
        LeaveAlternateScreen,
        DisableMouseCapture
    )?;
    terminal.show_cursor()?;

    if let Err(err) = res {
        println!("{err:?}");
    }

    Ok(())
}

fn run_app<B: Backend>(terminal: &mut Terminal<B>, mut app: App) -> io::Result<()> {
    loop {
        terminal.draw(|f| ui(f, &app))?;

        if let Event::Key(key) = event::read()? {
            if key.kind == KeyEventKind::Press {
                match key.code {
                    KeyCode::Char('q') => return Ok(()),
                    KeyCode::Char('p') => app.show_popup = !app.show_popup,
                    _ => {}
                }
            }
        }
    }
}

fn ui(f: &mut Frame, app: &App) {
    let area = f.size();

    let vertical = Layout::vertical([Constraint::Percentage(20), Constraint::Percentage(80)]);
    let [instructions, content] = vertical.areas(area);

    let text = if app.show_popup {
        "Press p to close the popup"
    } else {
        "Press p to show the popup"
    };
    let paragraph = Paragraph::new(text.slow_blink())
        .centered()
        .wrap(Wrap { trim: true });
    f.render_widget(paragraph, instructions);

    let block = Block::bordered().title("Content").on_blue();
    f.render_widget(block, content);

    if app.show_popup {
        let block = Block::bordered().title("Popup");
        let area = centered_rect(60, 20, area);
        f.render_widget(Clear, area); //this clears out the background
        f.render_widget(block, area);
    }
}

/// helper function to create a centered rect using up certain percentage of the available rect `r`
fn centered_rect(percent_x: u16, percent_y: u16, r: Rect) -> Rect {
    let popup_layout = Layout::vertical([
        Constraint::Percentage((100 - percent_y) / 2),
        Constraint::Percentage(percent_y),
        Constraint::Percentage((100 - percent_y) / 2),
    ])
    .split(r);

    Layout::horizontal([
        Constraint::Percentage((100 - percent_x) / 2),
        Constraint::Percentage(percent_x),
        Constraint::Percentage((100 - percent_x) / 2),
    ])
    .split(popup_layout[1])[1]
}
